Bigger doesn't automatically mean better cooling. Whether your ductwork can handle a bigger AC unit has nothing to do with the tonnage stamped on the new outdoor unit and everything to do with how much air your existing ducts can actually move. A static pressure test, not a guess, is what tells you the real answer.
- A bigger AC needs roughly 400 CFM per ton of cooling, so jumping tonnage without checking ducts risks high static pressure.
- Most residential air handlers max out around 0.5 in. w.c. of external static pressure before airflow chokes.
- South Florida homes built before 2010 often have ducts sized for smaller, older R-22 systems, not today’s bigger tonnage.
- A.R. Williams Air Conditioning recommends a static pressure test before any AC upgrade, not after installation day.
Why this matters
Homeowners upgrading to a bigger AC unit usually think in tons, not airflow. A 3-ton system swapped for a 4-ton system sounds like a straightforward win against South Florida heat, but the ductwork underneath the house doesn't automatically scale with it.
When the ducts can't keep up, the symptoms mimic a bad AC install: rooms that stay warm, a coil that freezes over, a system that short cycles all afternoon. None of that gets fixed by another service call on the equipment. It gets fixed by looking at the ducts first, which is a step a lot of quotes skip entirely.

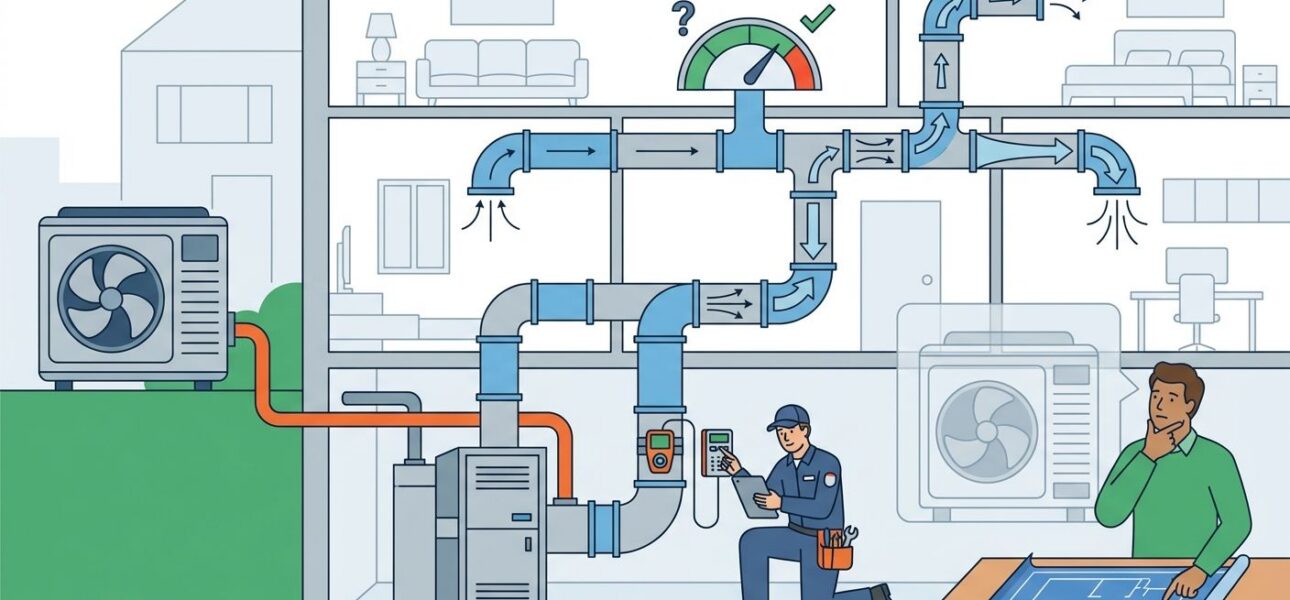

Can your ductwork handle a bigger AC unit? Here's how to check
This is a measurement problem, not a visual one. You can't tell whether ducts can handle more airflow by looking at them from the attic hatch. Here's the order a technician should actually work through:
- Run a static pressure test at the air handler. This is the single most reliable number. It tells you how hard the blower is working to push air through the existing return air sizing and supply trunk.
- Compare the reading to the equipment's rated maximum. Most residential air handlers are built to handle around 0.5 in. w.c. of total external static pressure. Readings well above that mean the ducts are already a bottleneck at the current tonnage, let alone a bigger one.
- Measure the return air grille and supply trunk sizes. A single undersized return grille feeding a whole house is a common bottleneck in homes built before 2010, long before the newer AC unit ever gets installed.
- Check duct material and age. Flex duct that's kinked, crushed under attic storage, or original to a house from the 1980s or 1990s restricts airflow no matter how the numbers look on paper.
- Have a Manual J load calculation and duct capacity check run together. Sizing the AC without recalculating what the ducts can move is how oversized systems end up installed on undersized ducts in the first place.
- Inspect dampers, turning vanes, and transitions. Sharp 90-degree turns and closed-down dampers from a past renovation quietly choke airflow that a bigger AC unit would need to breathe.
Skip any of these steps and you're guessing. A technician who pulls a static pressure reading before quoting a bigger AC unit is doing the part of the job that actually protects the new equipment.
Why ductwork mismatches happen in South Florida homes
A few patterns show up over and over in Palm Beach County and Treasure Coast homes when a bigger AC unit gets installed on ductwork that wasn't built for it:
- Older housing stock. Homes built before 2010 often ran smaller R-22 systems, and the ducts were sized to match that smaller load, not the higher-tonnage equipment sold today.
- Room additions. A lanai enclosure or bedroom addition tapped off the main trunk without anyone upsizing the supply line to match the new square footage.
- Two-story layouts. A single trunk feeding upstairs bedrooms was often marginal even before an upgrade, and a bigger AC unit just pushes more air into a duct that was already stretched thin.
- Snowbird and seasonal homes. Ductwork that sits with the AC off for months at a time develops leaks and disconnected joints that go unnoticed until a bigger system exposes them.
- Return air undersizing. A lot of older South Florida homes have one central return grille for the entire house, which becomes the bottleneck the moment tonnage goes up.
- Attic conditions. Flex duct crushed by foot traffic, insulation, or storage boxes restricts airflow long before the AC itself is the problem.
What happens if you install a bigger AC on ductwork that's too small
High static pressure is the first casualty, and everything downstream follows from it. The blower works harder than it's rated for, which drives up static pressure past that 0.5 in. w.c. target and starves the coil of airflow.
A starved coil freezes. A frozen coil trips the system into short cycling, where it turns on and off in quick bursts instead of running a full cooling cycle. The house ends up cooling unevenly, energy bills climb, and the bigger AC unit wears out faster than its rated lifespan, even though the equipment itself did nothing wrong.
Do you need new ductwork when you upgrade to a bigger AC unit?
Not always, but it depends entirely on how far off the static pressure reading is. A system running just slightly over the target might only need a bigger return grille or a resized supply trunk section to catch up.
A system running well past 0.5 in. w.c., with duct runs that are also old, leaky, or undersized throughout, usually needs a broader fix. Ductwork replacement for older homes is the more honest recommendation in that case, and it protects the new AC unit's warranty and lifespan instead of setting it up to fail early.
How much airflow does a bigger AC unit actually need?
A bigger AC unit needs roughly 400 CFM per ton of cooling to run the way it's designed to. Jump from a 3-ton system to a 4-ton system and the ductwork needs to move about 400 more CFM than it did before, which is exactly the number a static pressure test and a duct capacity check are built to confirm.
Can you resize ductwork without replacing the entire system?
Often, yes. Adding a second return, upsizing a single trunk section, or swapping out a few runs of crushed flex duct can solve a moderate mismatch without touching the whole layout. When leaks and undersizing show up throughout the house, a full replacement ends up being the more reliable long-term fix rather than patching pieces one at a time.
FAQ
What’s the best way to know if ductwork can handle a bigger AC unit?
A static pressure test at the air handler is the most reliable way to know. It measures how hard the blower is working against the existing ducts, and a reading near or under 0.5 in. w.c. is the target most residential systems are built around.
Is it bad to install a bigger AC unit on old ductwork?
Yes, if the ducts weren’t sized for the added airflow. Static pressure climbs, the coil can freeze, and the system short cycles instead of running a full cooling cycle, all of which shortens the life of a brand new AC unit.
How much bigger can I go with my AC unit given my current ductwork?
It depends on the static pressure reading and the size of your return and supply ducts, not on the square footage of your home. A duct capacity check paired with a Manual J load calculation gives the actual ceiling for your house.
What size return air do I need for a bigger AC unit?
Return air needs to scale with the added tonnage, and a single undersized grille built for a smaller system is one of the most common bottlenecks in South Florida homes built before 2010.
Does upsizing AC tonnage always mean new ductwork?
No. A moderate mismatch can sometimes be fixed with a bigger return grille or a resized trunk section. Ductwork throughout the house that’s leaky and undersized usually needs a fuller replacement instead.
Why does my new bigger AC unit feel weaker than the old one?
It usually means the ductwork is restricting airflow more than the old, smaller system ever demanded. The bigger AC unit needs about 400 CFM per ton to perform, and undersized ducts can’t deliver that.
Can undersized ductwork shorten the life of a new AC unit?
Yes. Running above the rated static pressure puts continuous strain on the blower motor and coil, and that strain adds up to earlier failures on equipment that should otherwise last for years.
One last thing
The tonnage number on the new outdoor unit is the least useful figure when it comes to ductwork. What actually matters is the CFM rating on the air handler's blower and whether the ducts can deliver it. A technician who leads with a static pressure test before quoting tonnage is doing the part of the job that keeps a bigger AC unit from underperforming the day it's installed in 2026.
